LUYED LED- New (Frugal) LED Reverse Light.

768mph

Well-Known Member
Joined
Jun 24, 2018
Messages
209
Reaction score
197

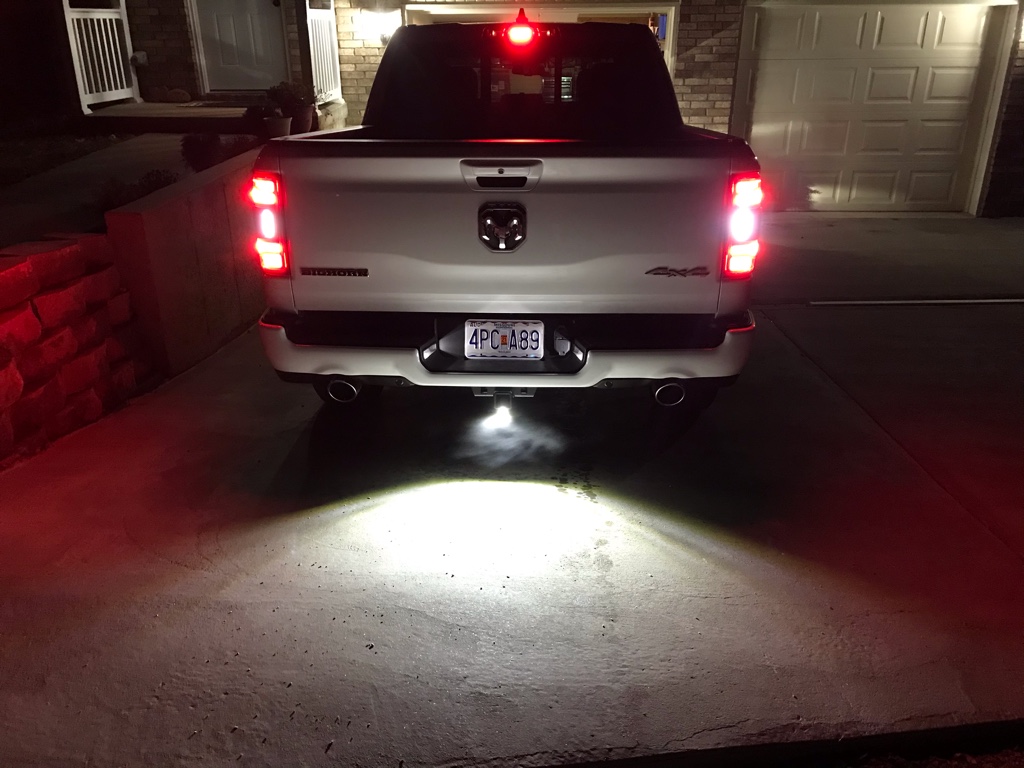

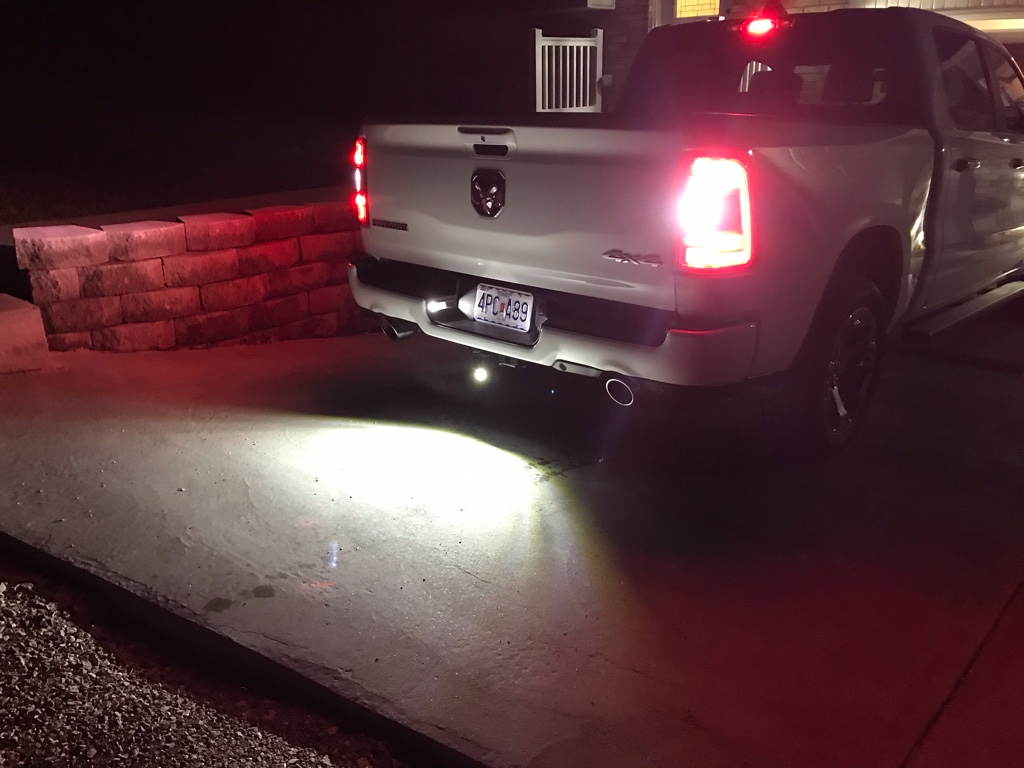

LUYED Reverse Light

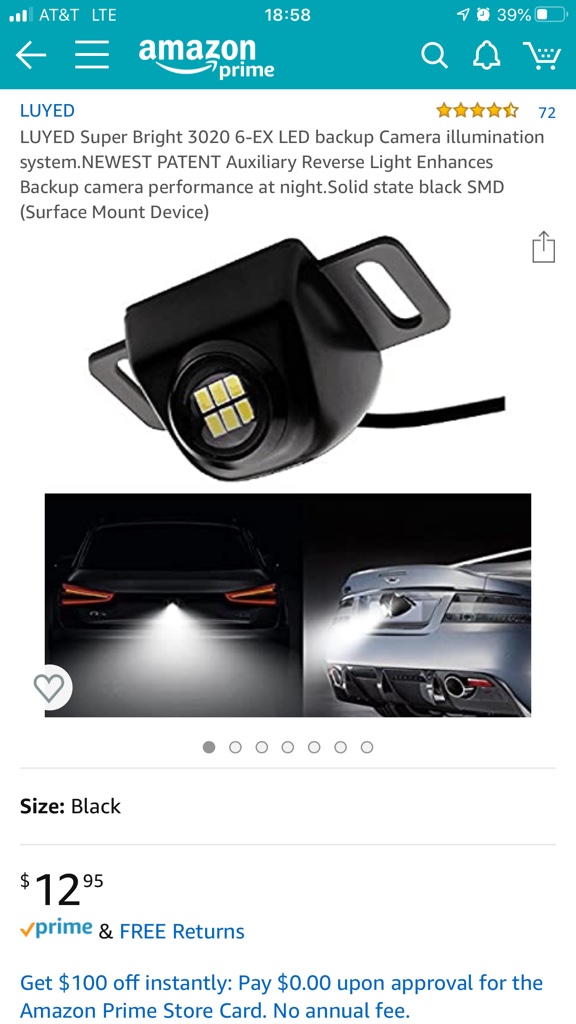

EDIT: Install instructions provided by the manufacture LUYED. Please install however you see fit.

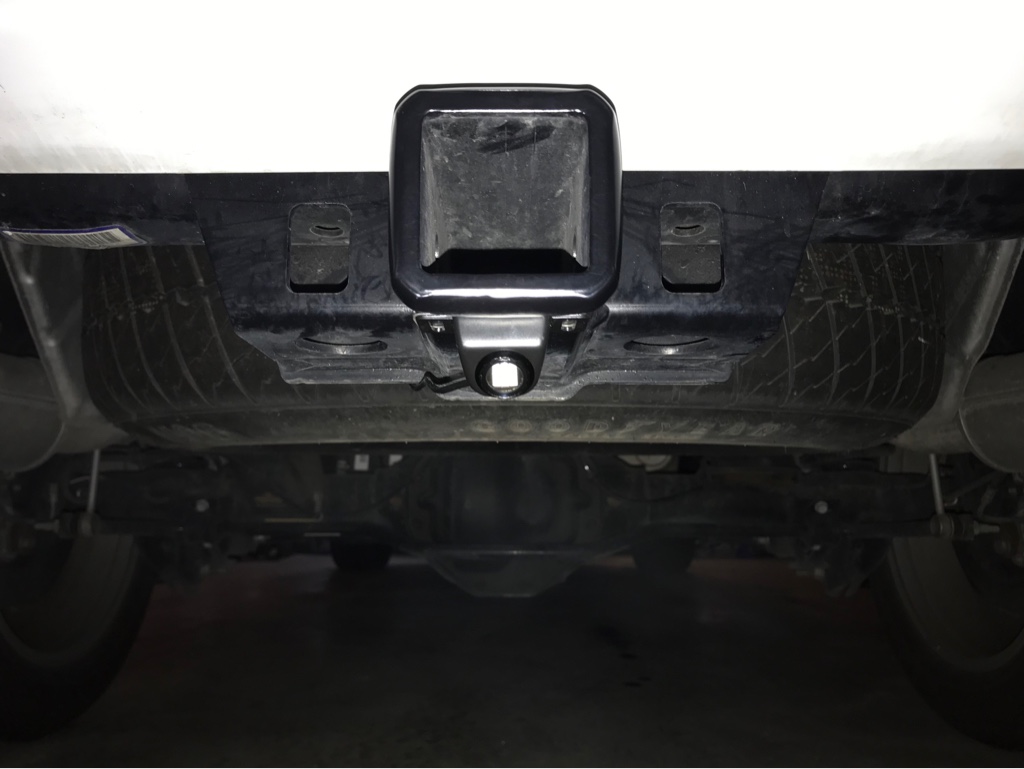

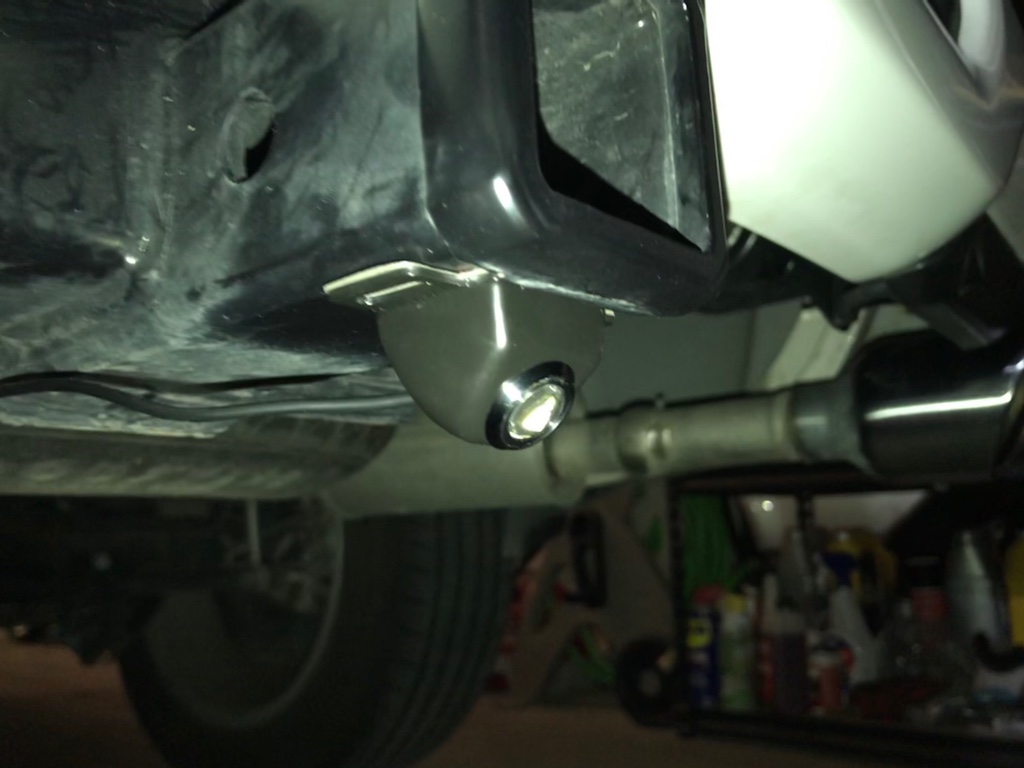

Tapped into the 7 pin with supplied T connectors. 3M taped (supplied) to the bottom of the receiver.




Install:

-Look at your 7pin and look in behind your bumper.

-Disconnect your 7 pin by releasing the black push tab (clockwise 2 oclock position)

-Disconnect gray wire cover by depressing two gray push tabs and release

-Cut away stock black tape to reveal wires.

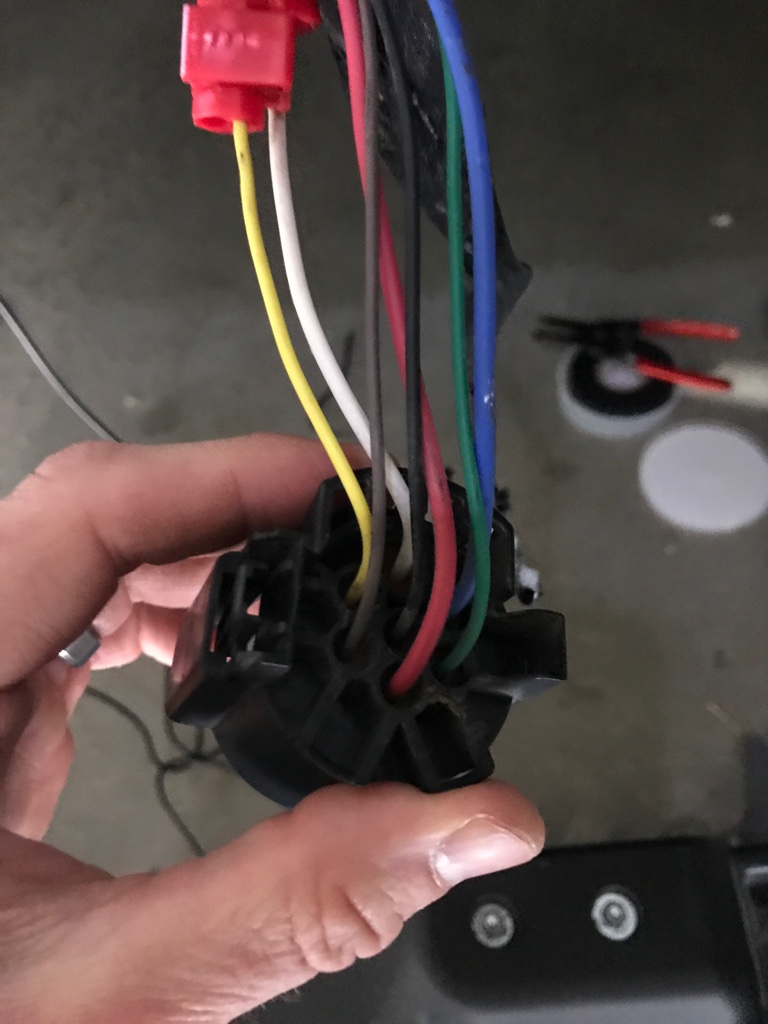

- Use T connector for 7 pin White Wire (ground) and black wire: 7 pin 7 oclock position

-Use T connector for 7 pin black wire (power reverse) and red wire : 7 pin center positon

Tape back up with electrical tape to protect and mount where desired with supplied 3M double sided tape. Use alcohol to clean area good.

* helpful tip- wires with LED are 20ga. Double up on the (fold over exposed wire) within the T connectors. Better contact.
** Always test the light before taping everything back up and mounting.



Sent from my iPhone using Tapatalk

Last edited:

lost demon

Active Member
Joined
Sep 19, 2019
Messages
35
Reaction score
24
LUYED Reverse Light

Tapped into the 7 pin with supplied T connectors. 3M taped (supplied) to the bottom of the receiver.




Install:

-Look at your 7pin and look in behind your bumper.

-Disconnect your 7 pin by releasing the black push tab (clockwise 2 oclock position)

-Disconnect gray wire cover by depressing two gray push tabs and release

-Cut away stock black tape to reveal wires.

- Use T connector for 7 pin White Wire (ground) and black wire: 7 pin 7 oclock position

-Use T connector for 7 pin black wire (power reverse) and red wire : 7 pin center positon

Tape back up with electrical tape to protect and mount where desired with supplied 3M double sided tape. Use alcohol to clean area good.

* helpful tip- wires with LED are 20ga. Double up on the (fold over exposed wire) within the T connectors. Better contact.
** Always test the light before taping everything back up and mounting.



Sent from my iPhone using Tapatalk

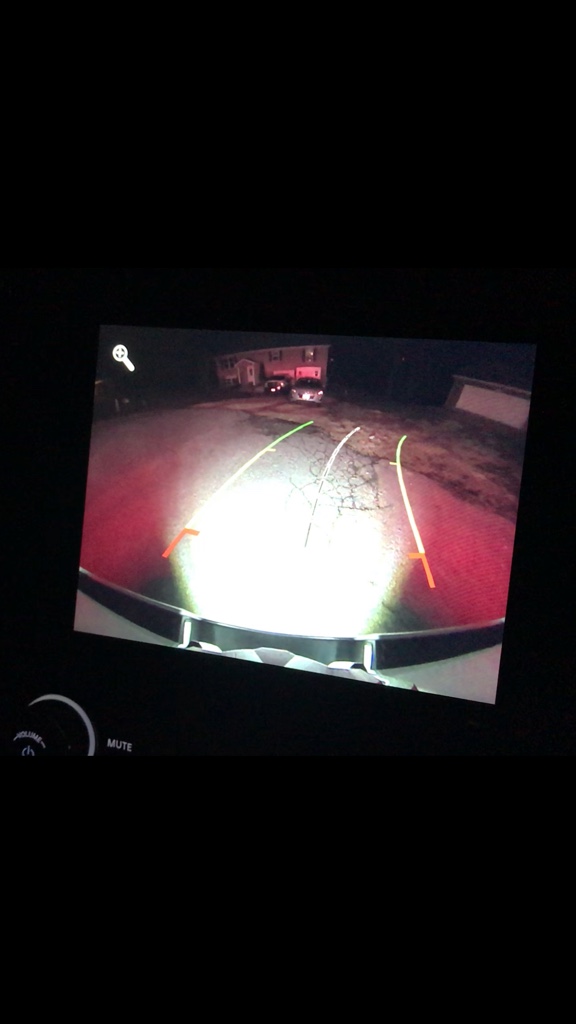

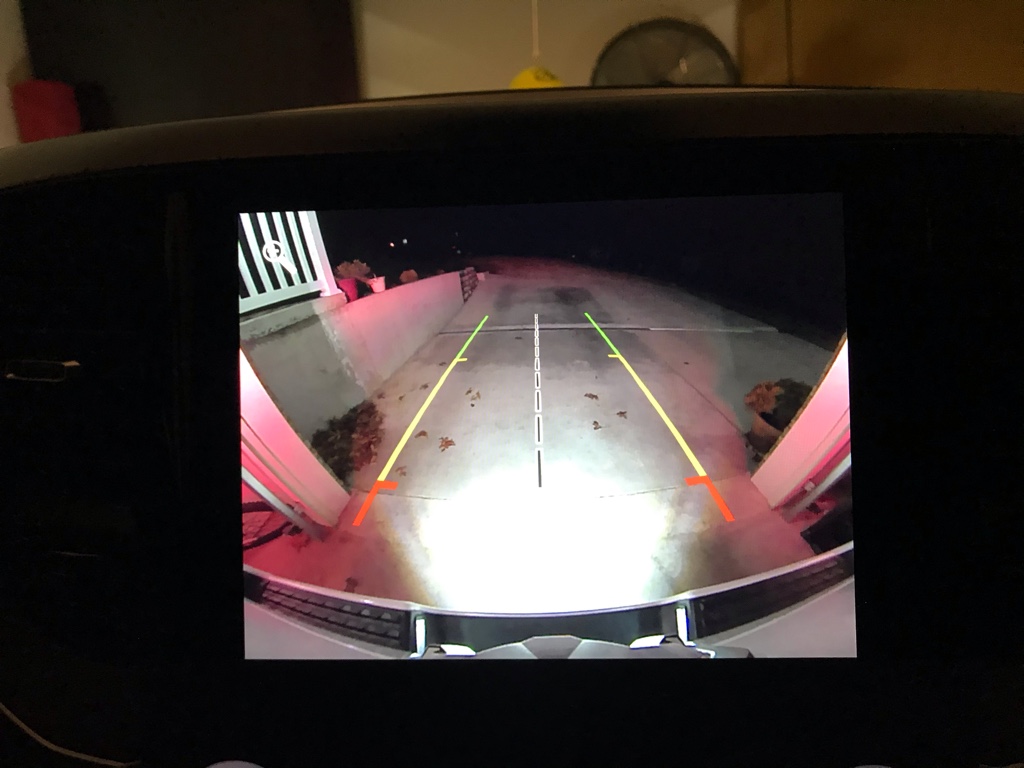

looks like a very helpful upgrade. i have a Rebel with the 12 inch screen and the brightness kind of cancells out the illumination of the stock backup lights.


blackamarss

Member
Joined
Oct 20, 2019
Messages
14
Reaction score
4
Location
NorCal
hey, i just got mine installed, very easy although i don’t really like the T connector, i solder the wire together. One correction to your instruction below, it should be black to black and white to Red wire paring. :)

LUYED Reverse Light

Tapped into the 7 pin with supplied T connectors. 3M taped (supplied) to the bottom of the receiver.




Install:

-Look at your 7pin and look in behind your bumper.

-Disconnect your 7 pin by releasing the black push tab (clockwise 2 oclock position)

-Disconnect gray wire cover by depressing two gray push tabs and release

-Cut away stock black tape to reveal wires.

- Use T connector for 7 pin White Wire (ground) and black wire: 7 pin 7 oclock position

-Use T connector for 7 pin black wire (power reverse) and red wire : 7 pin center positon

Tape back up with electrical tape to protect and mount where desired with supplied 3M double sided tape. Use alcohol to clean area good.

* helpful tip- wires with LED are 20ga. Double up on the (fold over exposed wire) within the T connectors. Better contact.
** Always test the light before taping everything back up and mounting.



Sent from my iPhone using Tapatalk


768mph

Well-Known Member
Joined
Jun 24, 2018
Messages
209
Reaction score
197
hey, i just got mine installed, very easy although i don’t really like the T connector, i solder the wire together. One correction to your instruction below, it should be black to black and white to Red wire paring. :)

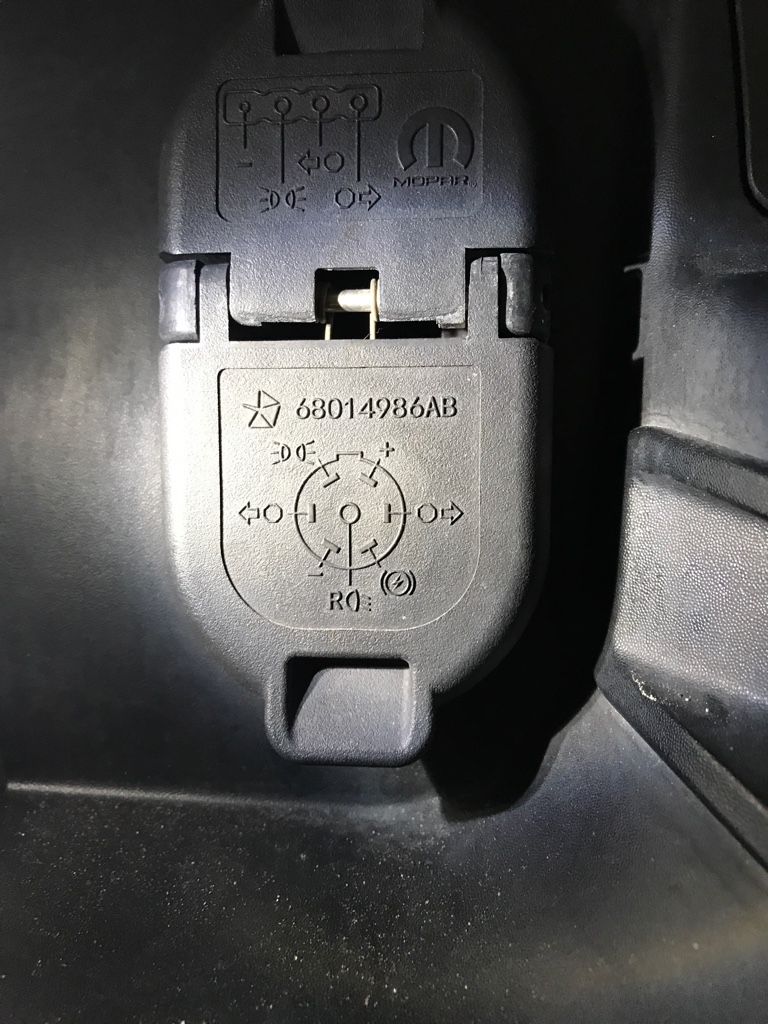

On my wife’s truck 19 Ram Big Horn, 7 pin had white as ground and black was the center Reverse wire; by the diagram on the 7 pin cap pictured.

Id run a power probe to yours to be sure, unless your wire colors are different. Which could be a possibility. I had a friend with a 19 Ram and he suggested White/GR and Yellow/REV.
On my truck, that was the brake lights.


Sent from my iPhone using Tapatalk


blackamarss

Member
Joined
Oct 20, 2019
Messages
14
Reaction score
4
Location
NorCal
On my wife’s truck 19 Ram Big Horn, 7 pin had white as ground and black was the center Reverse wire; by the diagram on the 7 pin cap pictured.

Id run a power probe to yours to be sure, unless your wire colors are different. Which could be a possibility. I had a friend with a 19 Ram and he suggested White/GR and Yellow/REV.
On my truck, that was the brake lights.


Sent from my iPhone using Tapatalk
um... on my Laramie, it’s also black/REV and white/GR . there is one other possibility is that the led light that i bought had it reversed.


768mph

Well-Known Member
Joined
Jun 24, 2018
Messages
209
Reaction score
197
um... on my Laramie, it’s also black/REV and white/GR . there is one other possibility is that the led light that i bought had it reversed.

My wife does not have a factory trailer brake, does yours?

I haven’t checked my 2019’Ram Laramie. Which i sold recently or I could compare.

Side bar: I got back into a Chevy SS Sedan. (Had previous G8 GT and SS) Two new truck payments sucked and a new baby on the way.


Sent from my iPhone using Tapatalk


blackamarss

Member
Joined
Oct 20, 2019
Messages
14
Reaction score
4
Location
NorCal
My wife does not have a factory trailer brake, does yours?

I haven’t checked my 2019’Ram Laramie. Which i sold recently or I could compare.

Side bar: I got back into a Chevy SS Sedan. (Had previous G8 GT and SS) Two new truck payments sucked and a new baby on the way.


Sent from my iPhone using Tapatalk
Nope, I don't have trailer brake.


768mph

Well-Known Member
Joined
Jun 24, 2018
Messages
209
Reaction score
197
Any idea how much a drop hitch receiver would block the light this way? All summer I have a bar with a 4 inch drop installed.

It would most likely block mounted to THAT location. Alternative would mount somewhere else or buy two and mount them to the underside bumper (on either side of the receiver) and have double the light, unobstructed.


Sent from my iPhone using Tapatalk


rxit

Active Member
Joined
Jan 10, 2020
Messages
72
Reaction score
81
Location
Chicagoland
I installed this and it definitely meets my needs. I did use curt connectors to make removal easier if I want to. I was looking at a different set up but did not want to risk the tail gate damage some have reported. This works, install was easy


768mph

Well-Known Member
Joined
Jun 24, 2018
Messages
209
Reaction score
197
I installed this and it definitely meets my needs. I did use curt connectors to make removal easier if I want to. I was looking at a different set up but did not want to risk the tail gate damage some have reported. This works, install was easy

Glad you like it! Thanks for the feedback.


Sent from my iPhone using Tapatalk


Jako

Spends too much time on here
Joined
Sep 8, 2018
Messages
2,797
Reaction score
1,702
Location
Borough of Parks
Installed two of these, one on each side of the hitch bottom. Fantastic results. I might use a few of these for bed lights.

View attachment 45112 View attachment 45113 View attachment 45114
I don't know how much adjustment you can do with those lights for the bed. Below is a post on the Kafeek which you can adjust and tuck out of the way of cargo.
They can be purchased on Amazon for $14.99 (sold individually)

My intentions are to wire up Kafeeks in the bed with the auxiliary reverse lights with a double pole double throw switch (DPDT) so the area behind the truck is lighted along with the bed. The DPDT will switch the power from the reverse wire to the auxiliary wire on the 5 pin flat curt. Parts and wiring diagram have been worked out, just need a "spark" to get myself motivated. Part of my "tomorrow to someday to bucket list" list.
UPDATE - one off the list.
Post 364
