LED Reverse Lights

[Kbonk83]

I was reading threads for a few weeks trying to decide on either the Opt7 triple, or the Vleds Lpr. Both ideas seemed like they had issues or overly complicated to install, so I went another route. I mounted 2 auxiliary backup led lights under my rear bumper. They only come on in reverse, and I didn’t have to drill any holes or tap into any factory wiring.

I wired the lights into a trailer wire harness y-splitter. Meaning I wired into the splitter, and just plugged the splitter into my factory trailer plug. My stock plug coming out of the rear bumper is still available, and I actually have a spare plug available under the bumper as well.

I mounted the lights with 3” exhaust clamps to my trailer hitch frame.

It was kind of an experiment at first so I got some cheap lights from Amazon. I purchased the Nilight led flood lights, 60001F-B part number.

I’ll post some pictures once I get a chance to take some.



[JJRamTX]

Cool, definitely want to see pics. I just put in the much brighter cargo upper lights and they help light up everything better. I also created a lightshow with the Tazer that turns on all lights steady on (Brights, Lows, Fogs, Reverse, Puddles, Blinkers) but I didn't see the programming option for the cargo lights with the lightshow.



[Kbonk83]

Well until I can take some pictures of the install and light output, these are what I used.



[Kbonk83]

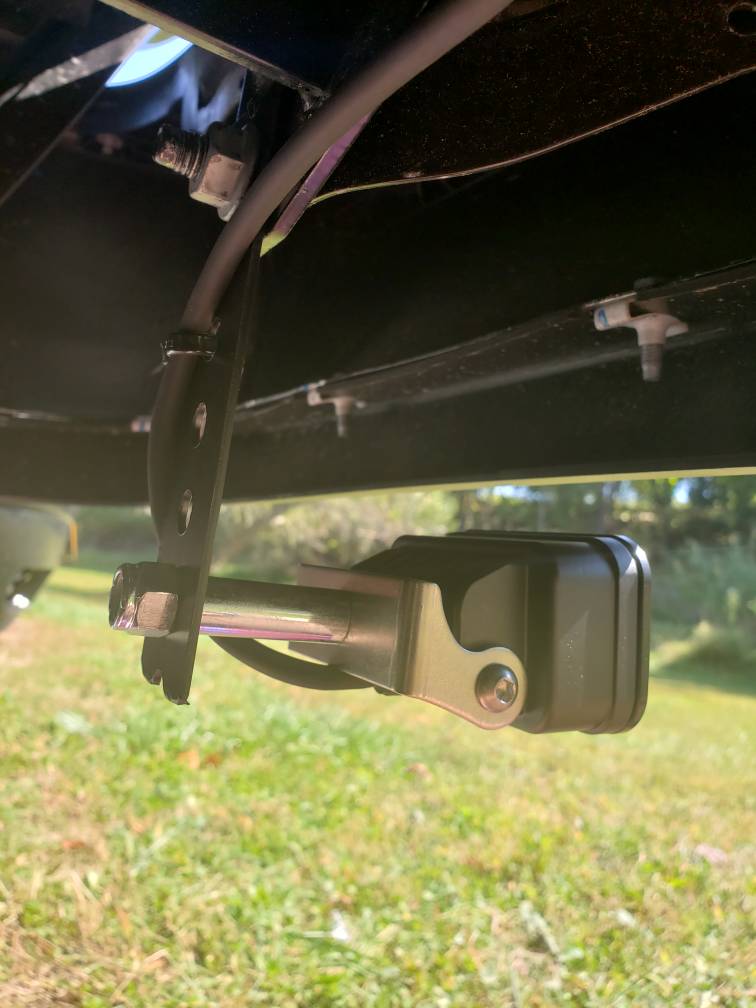

Here’s some pictures of how they’re mounted.



[Matthbert5150]

Looks great. Can you get some pics of the screen at night to see the extra illumination?

I think I'm going to steal your idea, but might choose more of a slimline single row light.

*waiting for delivery*
2019 Ram 1500 Laramie Rambox
5.7l 4x4 3.92
Pano Sunroof, level 2 w/ 12", black appearance package, adv. Safety group, Power running boards
6" ProComp Stage 1 lift kit with 37x12.50r20 Nitto Ridge Grappler tires
20x10 - 24 fuel hostage wheels

*Future Mods"
Tazer DT, Pulsar, lomax cover, bed rug, borla atak exhaust



[Kbonk83]

Here’s the lights on at about 5am in the camera and mirror. I think I’m going to do some adjusting on the lights and turn them outward and up a little to have more throw to the sides and farther away from the truck. But even as they are now the light output is awesome!



[deanfx]

Great idea adding a splitter and tapping that vs the factory stuff. Can you give us a part number for the splitter?



[brawler1588]

Hey kbonk great minds think alike here are mine just about finished with the setup, you might want to take a look at my mounting option this way you can get them down farther and throw that light. PM me if you have any questions

https://r.tapatalk.com/shareLink/to...hare_fid=2034315&share_type=t&link_source=app

[/URL]

Did Someone Say Baja

Sent from my SM-G965U using Tapatalk



[Kbonk83]

Great idea adding a splitter and tapping that vs the factory stuff. Can you give us a part number for the splitter?

It’s a Hopkins 40984 splitter



[Kbonk83]

Hey kbonk great minds think alike here are mine just about finished with the setup, you might want to take a look at my mounting option this way you can get them down farther and throw that light. PM me if you have any questions

https://r.tapatalk.com/shareLink/to...hare_fid=2034315&share_type=t&link_source=app

[/URL]

Did Someone Say Baja

Sent from my SM-G965U using Tapatalk

It’s funny you suggest that, because the first thing I planned to do was almost exactly what you did. I even bought that bracket and was going to cut my pieces then saw the idea about the exhaust clamps and that seemed easier. I also wanted the lights more tucked up under the bumper, almost so they cannot be seen. I’m going to do some adjusting on the lights and see how that goes, then maybe do something more like yours if that doesn’t work out.



[brawler1588]

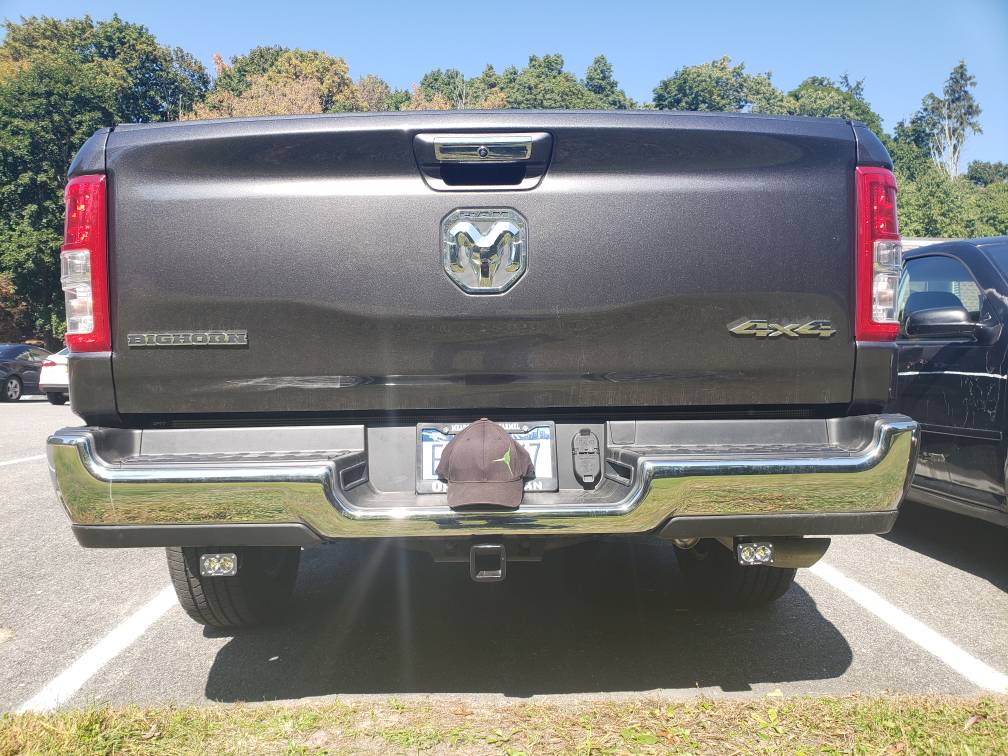

Awesome I love lights. Here is my finished setup.

Sent from my SM-G965U using Tapatalk



[Kbonk83]

That looks like a good setup



[bamanerd]

Looks great guys. I'm really digging Kbonk's setup, so I just placed an order on Amazon for the following items:

• OEM Trailer Plug Wiring Harness Y-Adapter Converter Splitter 040-984 (This thing will come in VERY handy for the life of the truck) - $38
• Nilight 60001F-B Bar 2PCS 18w 4" Flood Fog Road Boat Driving Led Work Light SUV Jeep Lamp - $13
• 3" Stainless Saddle Style U-Bolts Exhaust Muffler Clamp with Flat Band Double Edge - $8

I may switch to a set of S2's like Brawler is using at a later date, if these 13 dollar specials don't last. We'll see. I'll post some pics when everything comes in.



[JJRamTX]

View attachment 36100 View attachment 36101 Well until I can take some pictures of the install and light output, these are what I used.

Which color wire is the reverse light on the plug harness? I ordered these and the lights came in yesterday but the y splitter isn't here yet.



[rsmeanie]

Which color wire is the reverse light on the plug harness? I ordered these and the lights came in yesterday but the y splitter isn't here yet.

Reverse is the black wire in the middle of the 7-pin trailer plug.



[brawler1588]

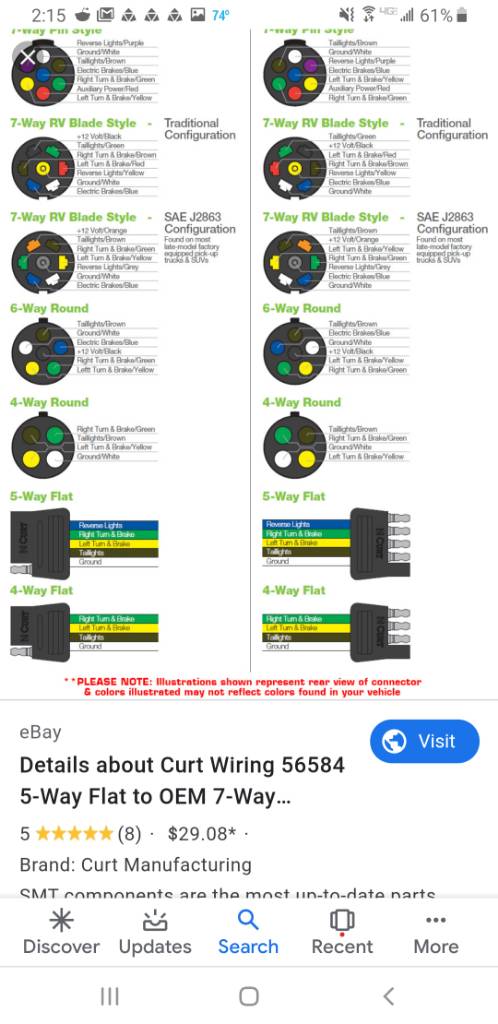

Not sure if this will help you any

Sent from my SM-G965U using Tapatalk



[rsmeanie]

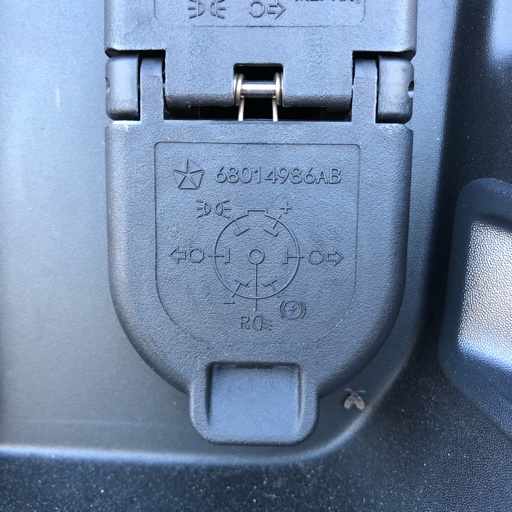

Just look at the plug itself. Reverse is the center pin.

Sent from my iPhone using Tapatalk



[Kbonk83]

Reverse is the black wire in the middle of the 7-pin trailer plug.

The reverse is the center wire, I’m pretty sure it was the purple wire on my harness



[Kbonk83]

These two pictures would be better to go off of than previously posted. I tapped into the purple and white wires on the harness.



[rsmeanie]

The reverse is the center wire, I’m pretty sure it was the purple wire on my harness

Yeah, it might have been purple. It was dark under there. Lol.
