Headlight Adjustment

[VaderRebel]

Anyone have success aiming their own headlights after lift or level?

Or is this a dealer only thing with the new LED's?



[jamesfg]

Hold please, let me get a hold of my buddy who is a bodyman at a collision center. I need to find out too cos I'm going to be blinding folks here real quick.



[jamesfg]

Anyone have success aiming their own headlights after lift or level?

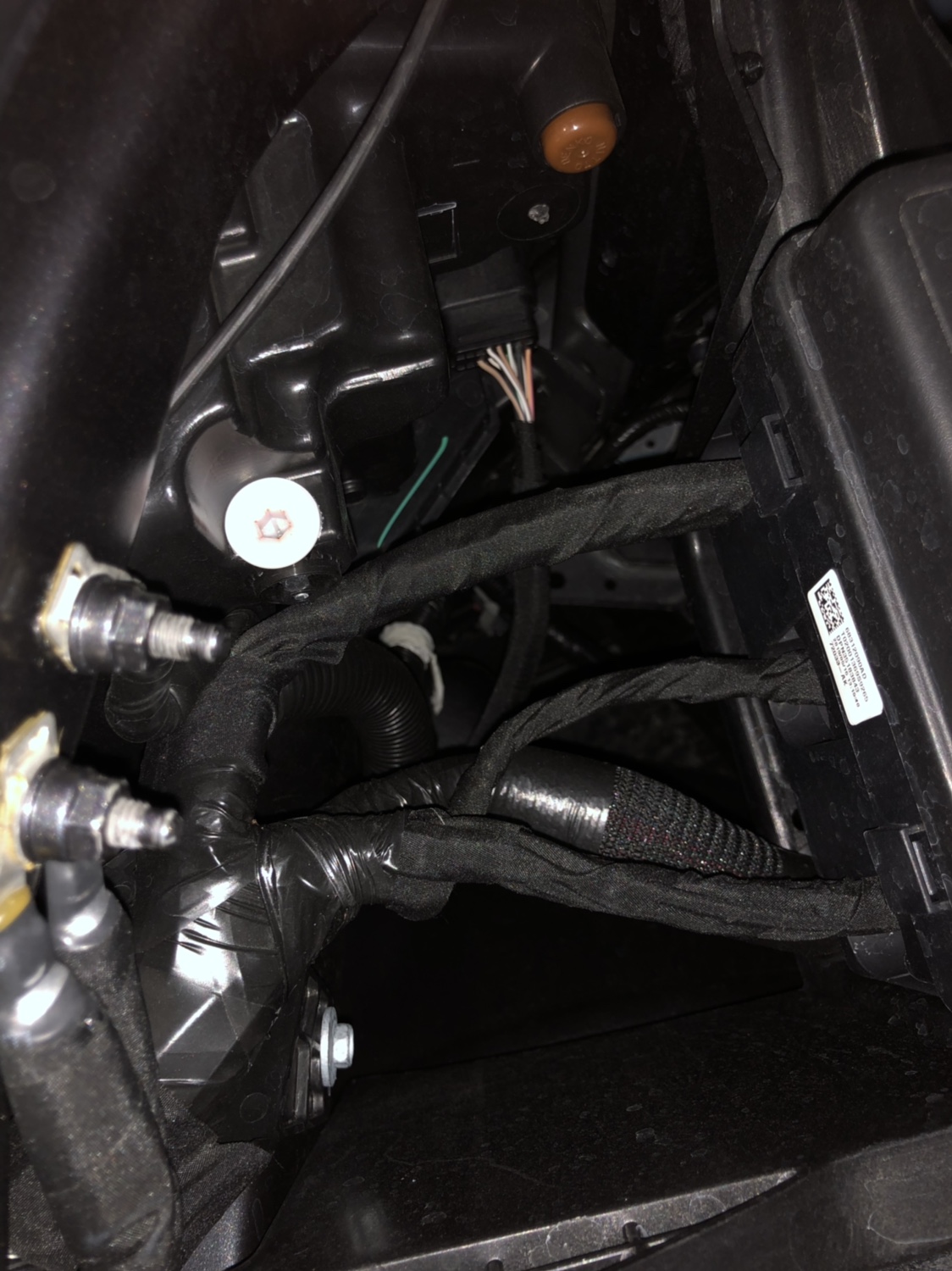

Paul said ya can adjust height via the phillips screw shown in the pix.



[ExcursionDiesel]

Paul said ya can adjust height via the phillips screw shown in the pix. View attachment 5790

Good to know. Thanks!



[jamesfg]

I serve some minimal good purpose once or twice a year when I'm not thinking up of crazy ideas.



[RBRK]

I did mine I used my garage door. I pulled up and marked a spot for the wheels and then put masking taoe where they shined before the level. Then after adjusted to the same marks after.



[356]

Jamesfg, Great information and pictures!
RBRK, Good reminder.



[VaderRebel]

Was that pic looking down or up? And sadly I didn't create a height benchmark before I leveled my truck. Good'ole eyeball will have to do!



[PorBoy]

When I had to adjust my one truck after I lifted it, I went to the dealership and measured twice as a comparison. That truck had a six inch lift and after it wasn’t too far off the mark.



[VaderRebel]

Paul said ya can adjust height via the phillips screw shown in the pix. View attachment 5790

Thank you brother! Head lights successfully adjusted thanks to your continued quick and helpful replies. Cheers!



[Cajunhemi]

Anyone have issues with the limited LED’s? I see the set screw and read that counterclockwise will adjust down. Since day one my drivers side light is aimed higher then passenger side and it doesn’t react to turning the screw and I have turned quite a bit. Thanks



[19 streak]

Anyone have issues with the limited LED’s? I see the set screw and read that counterclockwise will adjust down. Since day one my drivers side light is aimed higher then passenger side and it doesn’t react to turning the screw and I have turned quite a bit. Thanks

My driverside headlight has been pointed higher then the passenger side from factory as well



[RBRK]

It’s hard to get it to turn with a Phillips I use a thin flat blade that only goes In one slot not both like a Phillips. I tried number one and two Phillips neither fit well. Try a small flat blade and I’m sure it will adjust.



[VaderRebel]

Interesting, to me it looked like an allen/hex head, but my small phillips turned it with no problem... both headlights adjusted properly. So those that can't adjust might have something else wrong.



[troutspinner]

Thanks for posting this @jamesfg Just made the adjustment, easy stuff.



[jamesfg]

I gotta say as much of a pita it is to log in here, I sincerely enjoy all you guys here. Theres no trolling, stupid questions or answers and you get a general vibe everyone is here to truly help each member out. I try to do the same and provide some positive input.



[barakutha]

First night driving after the level/tires, realized I’m that a-hole lol.. in the limited it's white.. I used a 7/32 hex

Sent from my iPhone using Tapatalk



[Gozar]

Is the adjustment the same for the traditional headlights? I have the Bighorn without LEDs.



[barakutha]

Is the adjustment the same for the traditional headlights? I have the Bighorn without LEDs.

I’m assuming it’s similar


Sent from my iPhone using Tapatalk



[clazer]

I used a big flatbit that fit really well in the hex. I think ram did a great job- you can basically use anything with a handle.
