Found cables behind radio

Nozzleman

Well-Known Member
Joined
Nov 10, 2020
Messages
222
Reaction score
164

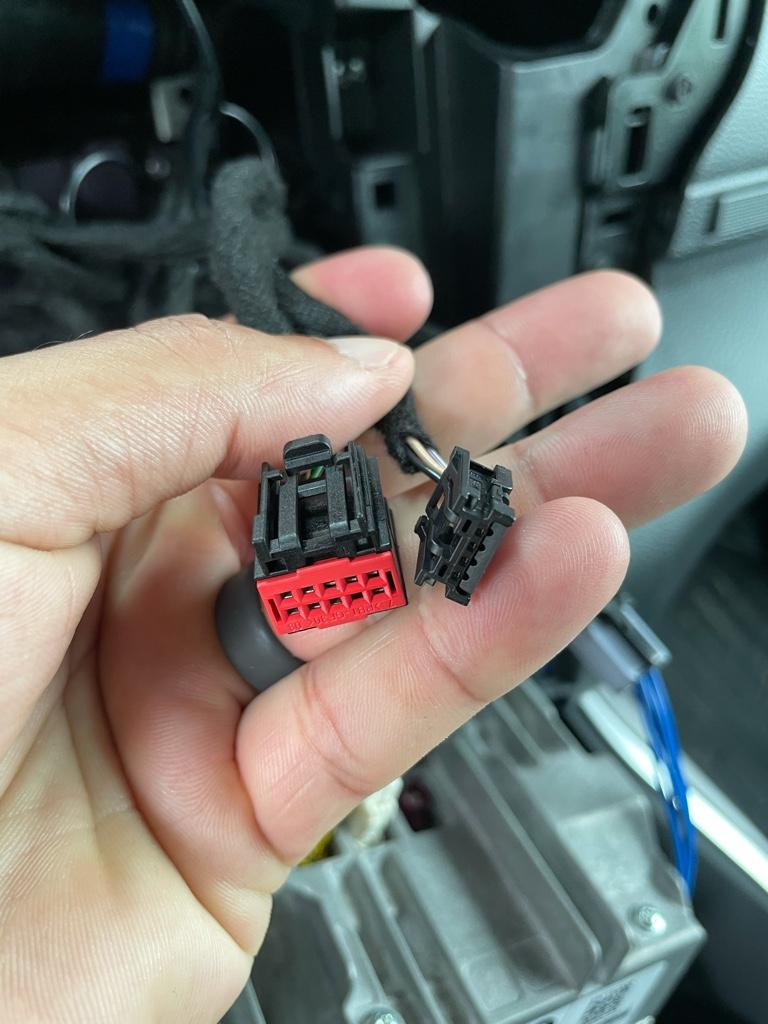

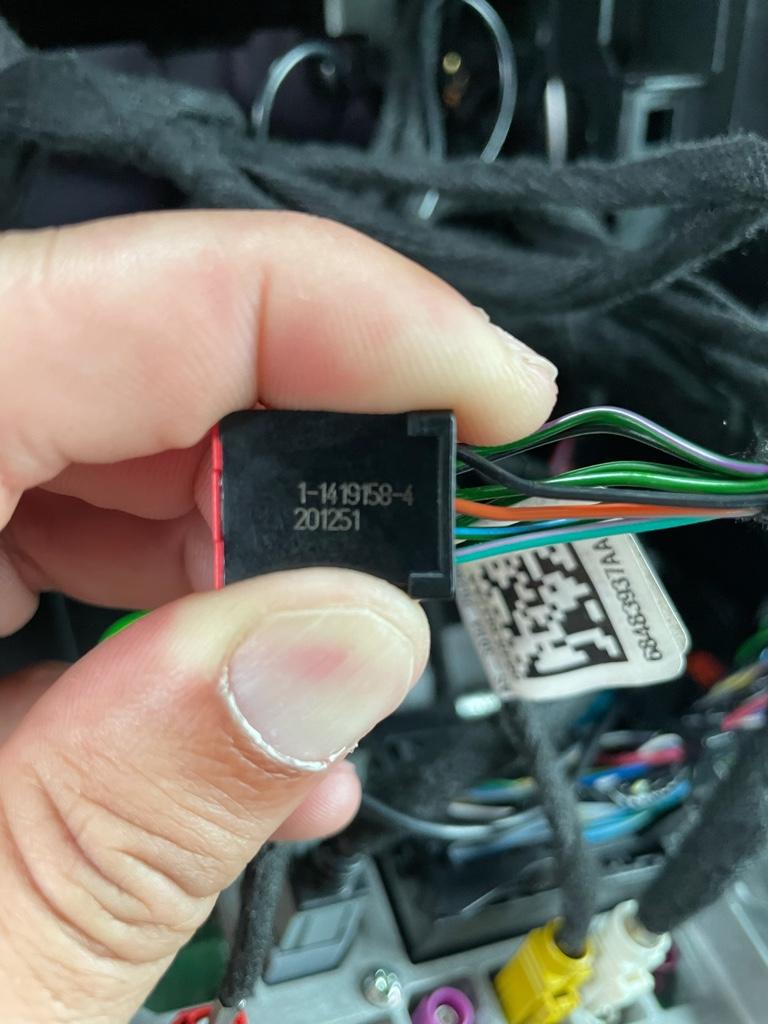

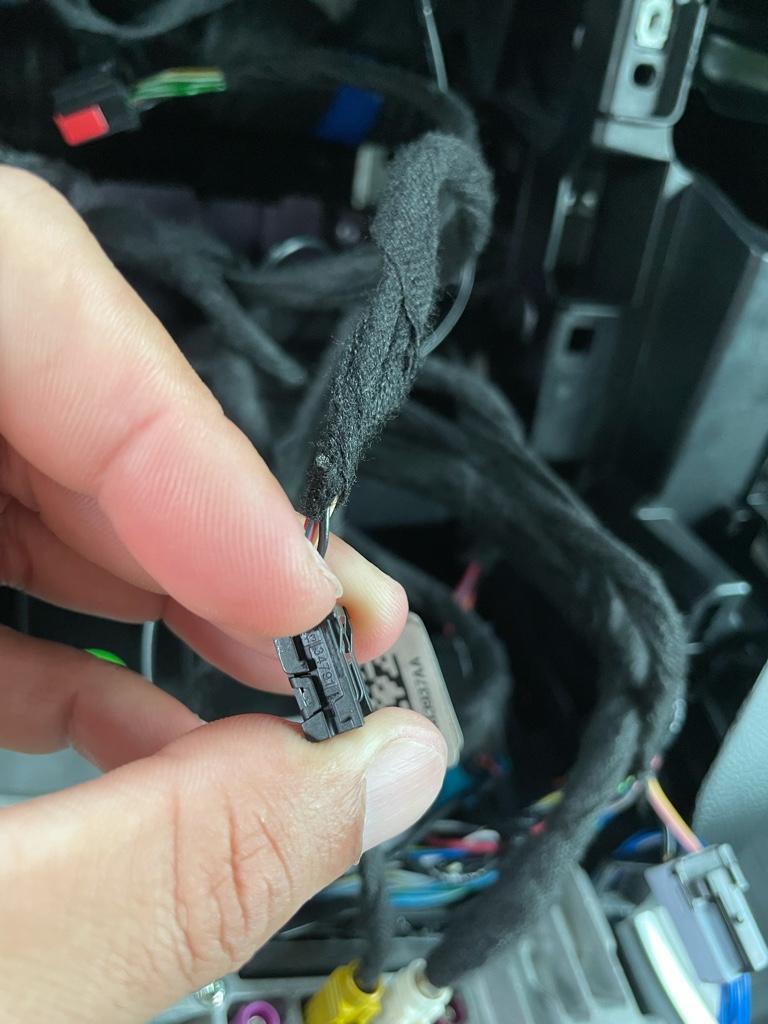

So I found these two cables behind my radio, does anyone know what their for?
They were factory taped to the wire harness.






Sent from my iPhone using Tapatalk


MannymanX

5thGenRams Supporter
Joined
Aug 3, 2019
Messages
2,137
Reaction score
1,132
Location
AzZona
So I found these two cables behind my radio, does anyone know what their for?
They were factory taped to the wire harness.






Sent from my iPhone using Tapatalk
For additional features your truck is not equipped with. Trailer brake controller, etc'


Jimmy07

Honorary Site Supporter
Site Supporter
Joined
Apr 11, 2019
Messages
1,986
Reaction score
2,152
Awesome!!! Thanks bro.


Sent from my iPhone using Tapatalk
Do you recall if there was one more loose connector laying around, probably more towards under the front of the center console area? DAA4750E-ABF9-40AF-9B5D-7B7FDE4C63C5.jpeg


Nozzleman

Well-Known Member
Joined
Nov 10, 2020
Messages
222
Reaction score
164
Yes I did see a couple of extra plugs above the shifter area.


Sent from my iPhone using Tapatalk


Jimmy07

Honorary Site Supporter
Site Supporter
Joined
Apr 11, 2019
Messages
1,986
Reaction score
2,152
Yes I did see a couple of extra plugs above the shifter area.


Sent from my iPhone using Tapatalk
Sorry, I meant more towards the glovebox (area circled in blue). If you can’t recall, no big deal- E419574E-DF44-4125-95C5-5D9FCEFA4275.jpeg


Nozzleman

Well-Known Member
Joined
Nov 10, 2020
Messages
222
Reaction score
164
I’ll try and take a look today, what would that be for?


Sent from my iPhone using Tapatalk


Jimmy07

Honorary Site Supporter
Site Supporter
Joined
Apr 11, 2019
Messages
1,986
Reaction score
2,152
That one would be for the reverse trailer steering module. I was about to custom build that harness for another member to add the feature, but may not be necessary now.


MannymanX

5thGenRams Supporter
Joined
Aug 3, 2019
Messages
2,137
Reaction score
1,132
Location
AzZona
That one would be for the reverse trailer steering module. I was about to custom build that harness for another member to add the feature, but may not be necessary now.
Can I add this feature to my 19'?
I have the button already from when I replaced the radio...


Jimmy07

Honorary Site Supporter
Site Supporter
Joined
Apr 11, 2019
Messages
1,986
Reaction score
2,152
Can I add this feature to my 19'?
I have the button already from when I replaced the radio...
View attachment 99095
I’m gonna say I doubt it. The fact that 2019-2020 DTs can’t get the trailer TPMS, digital rear view mirror, or AUX switches to work, probably not this feature either. There isn’t even a way to enable it with AlfaOBD, yet, so we’re just waiting for an update on that capability too.


RockJock

Active Member
Joined
Nov 15, 2018
Messages
165
Reaction score
161
Why do auto makers run cables/plugs/etc for options a vehicle doesn't have? Cheaper to do that instead of changing production machines to remove cables/plugs/etc?


HandyCruiser

Well-Known Member
Joined
Jun 28, 2021
Messages
258
Reaction score
305
Why do auto makers run cables/plugs/etc for options a vehicle doesn't have? Cheaper to do that instead of changing production machines to remove cables/plugs/etc?

Installing wiring harnesses with leads and plugs for uninstalled options provides the following advantages during production:

1. It limits the different types of harnesses that have to be produced. There might be a cost savings to produce 3 to 4 different harnesses for a specific application. But, let's say that there are 10 different independent options that could possibly be serviced by a single wiring harness. If a different harness was produced for every collective option choice possible, we would need to produce 1024 different harnesses. So it's easier and often cheaper just to produce just one or a few harnesses knowing that some leads and plugs will not be used.

2. Having one harness with most potentially-required leads and plugs in it allows for greater flexibility further down the assembly line. That way, chassis pre-wired for most options can be fitted as needed later in production.

There are likely other advantages as well such as ease of dealer-installed options.
