Custom Rack to work with RamBox and Tonneau Cover

Popp

Member
Joined
Aug 23, 2019
Messages
12
Reaction score
27
Hello,

Long time listener, first time caller... This is my first kick at the Ram can. I’ve had 3 F150’s (‘14, ‘16, ‘18) and have now been in my ‘19 Ram Limited for about 5 months and love it so far!

One thing I was a little upset about was that no one makes a rack to work with Ramboxes and a box cover...So I had one built! I had the Thule Xporter on the F150 and used the cross bars and bike mounts from it on the new one. I have Bak Flip hard cover that still works seamlessly as well have access to the amazing ramboxes and track tie down system.

Let me know what you think.
5D0AF29D-F03E-4BA7-97C8-058460054F61.jpeg 276AAC71-5DC4-4729-8DB4-557B8FD9D714.jpeg 2DC83F86-15CB-4A5D-8E0A-996BF1365556.jpeg 977CEBA8-C101-4CF0-9CC2-4A2B0F0A7D17.jpeg C6D5B86B-4065-492A-B1F6-D8D6769FBAE7.jpeg 4BEFFE00-0AD9-4045-883B-3F50647EA3DD.jpeg C506D419-03C9-46F0-95F3-2E440CA84602.jpeg

Last edited:

Ellisstrong

Spends too much time on here
Joined
Sep 18, 2018
Messages
2,076
Reaction score
1,165
Location
Atlanta Ga area
Hello,

Long time listener, first time caller... This is my first kick at the Ram can. I’ve had 3 F150’s (‘14, ‘16, ‘18) and have now been in my ‘19 Ram Limited for about 5 months and love it so far!

One thing I was a little upset about was that no one makes a rack to work with Ramboxes and a box cover...So I had one built! I had the Thule Xporter on the F150 and used the cross bars and bike mounts from it on the new one. I have Bak Flip hard cover that still works seamlessly as well have access to the amazing ramboxes and track tie down system.

Let me know what you think.
View attachment 58130 View attachment 58124 View attachment 58125 View attachment 58126 View attachment 58127 View attachment 58128 View attachment 58129
How exactly is that mounted? Is it there permanently?


Popp

Member
Joined
Aug 23, 2019
Messages
12
Reaction score
27
Hi Ellisstrong,

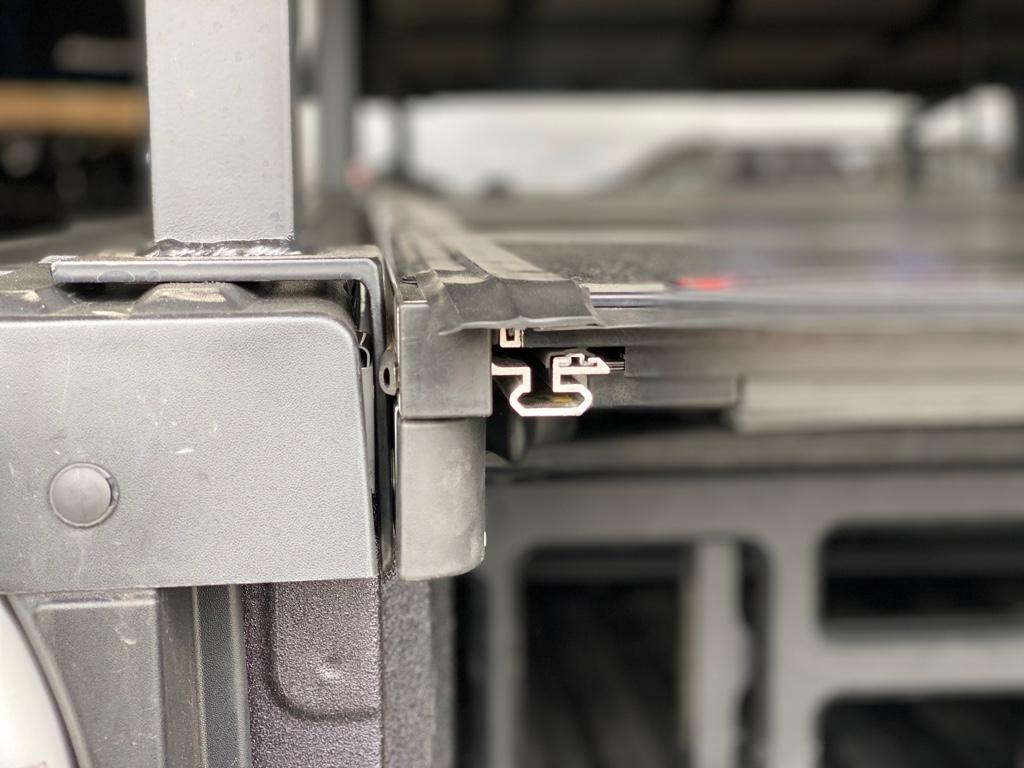

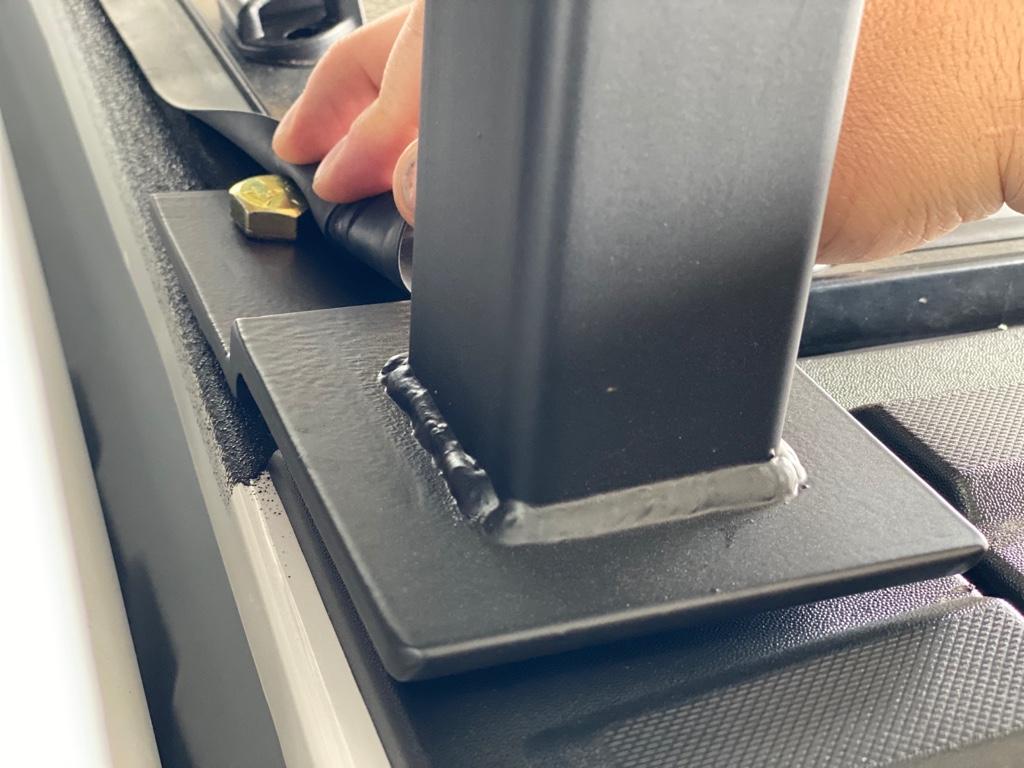

It is fully removable. Brackets mount behind the OEM Track with existing nut-certs. I replaced all 10 grade 5 bolts with grade 8 extended bolts. We built an extension on the front bracket that sits on the front bulkhead which is bolted down with 1/2” bolts. When all tightened up it is solid! Took it on some super rough roads with a few bikes attached and it didn’t budge.

Last edited:

go-ram

Ram Guru
Joined
Jun 30, 2018
Messages
715
Reaction score
643
Hi Ellisstrong,

It is fully removable. Brackets mount behind the OEM Track with existing nut-certs. I replaced all 10 grade 5 bolts with grade 8 extended bolts. We built an extension on the front bracket that sits on the front bulkhead which is bolted down with 1/2” bolts. When all tightened up it is solid! Took it on some super rough roads with a few bikes attached and it didn’t budge.
.
Very nicely done, congratulations. Are you going to go into production and start selling them?
.
If not, will you take some closeups of the front & rear mounts with the tonneau cover open?
.
Thanks!


RejuvenatorTX

New Member
Joined
Jan 8, 2020
Messages
2
Reaction score
1
Popp - this is awesome!

Would you mind posting some closeups of the front and rear mounts showing how/where they are bolted down? And/or photos of the brackets before you installed the frame?

In regards to your comment: "It is fully removable. Brackets mount behind the OEM Track with existing nut-certs. I replaced all 10 grade 5 bolts with grade 8 extended bolts. We built an extension on the front bracket that sits on the front bulkhead which is bolted down with 1/2” bolts. When all tightened up it is solid! Took it on some super rough roads with a few bikes attached and it didn’t budge."


RAM4EVER

New Member
Joined
Jun 5, 2020
Messages
1
Reaction score
0
Hello,

Long time listener, first time caller... This is my first kick at the Ram can. I’ve had 3 F150’s (‘14, ‘16, ‘18) and have now been in my ‘19 Ram Limited for about 5 months and love it so far!

One thing I was a little upset about was that no one makes a rack to work with Ramboxes and a box cover...So I had one built! I had the Thule Xporter on the F150 and used the cross bars and bike mounts from it on the new one. I have Bak Flip hard cover that still works seamlessly as well have access to the amazing ramboxes and track tie down system.

Let me know what you think.
View attachment 58130 View attachment 58124 View attachment 58125 View attachment 58126 View attachment 58127 View attachment 58128 View attachment 58129

Hey Popp,

That is exactly what I've been envisioning. Great work. Along with the other commentors I too would love to see some close ups of the connections to the truck both front and back and to understand what some of the challenges might have been.

Appreciate your time and effort!!


SilverNight2020

Well-Known Member
Joined
Mar 28, 2020
Messages
353
Reaction score
216
Location
Southern Illinois
Hello,

Long time listener, first time caller... This is my first kick at the Ram can. I’ve had 3 F150’s (‘14, ‘16, ‘18) and have now been in my ‘19 Ram Limited for about 5 months and love it so far!

One thing I was a little upset about was that no one makes a rack to work with Ramboxes and a box cover...So I had one built! I had the Thule Xporter on the F150 and used the cross bars and bike mounts from it on the new one. I have Bak Flip hard cover that still works seamlessly as well have access to the amazing ramboxes and track tie down system.

Let me know what you think.
View attachment 58130 View attachment 58124 View attachment 58125 View attachment 58126 View attachment 58127 View attachment 58128 View attachment 58129
I am digging this thing! I don't even transport anything that I would need this for, but I want one. Great job on the modifications to make this work!


djjr50

Well-Known Member
Joined
Dec 23, 2019
Messages
202
Reaction score
64
Yes, Popp...please post pics of how you mounted them.

Also, what rims are those? And are you on air suspension? If so, is that just the entry position or did you lower the truck?


Popp

Member
Joined
Aug 23, 2019
Messages
12
Reaction score
27
Hi Everyone,

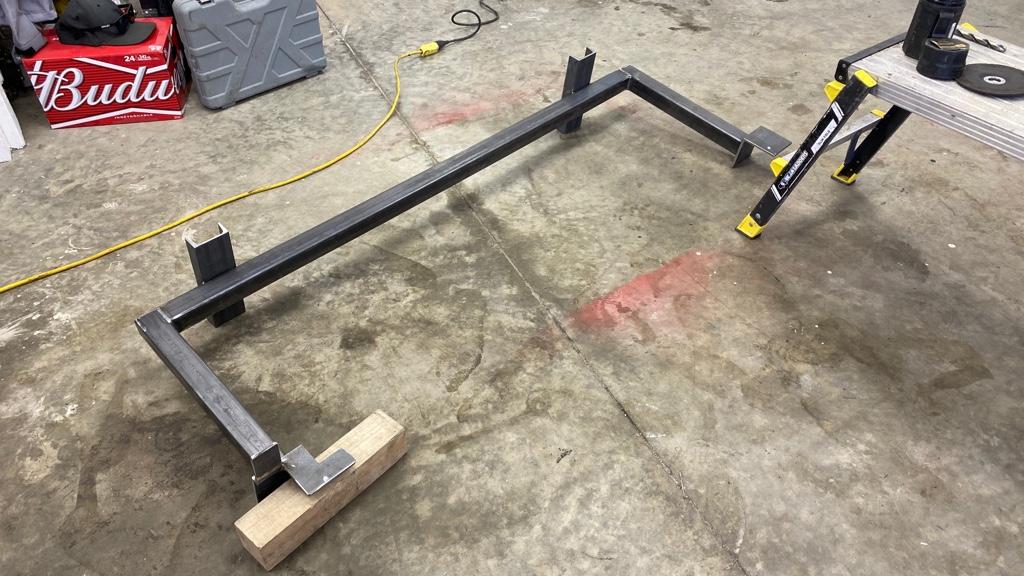

Sorry for late reply, not on here much. Here are some pictures of the rack while being built as well as close ups of mounts. My partner is willing to make more at whatever height/modifications you’d like. Just the racks without Thule cross bars would be about $500 (powdercoted) Thule bars were about $250 (can’t remember as it was originally on from a Xporter. We could build our on cross bars if using for ladders or canoes etc. But Thule, Yakima etc bars would be best for accessories like ski/bike racks.


Sent from my iPhone using Tapatalk

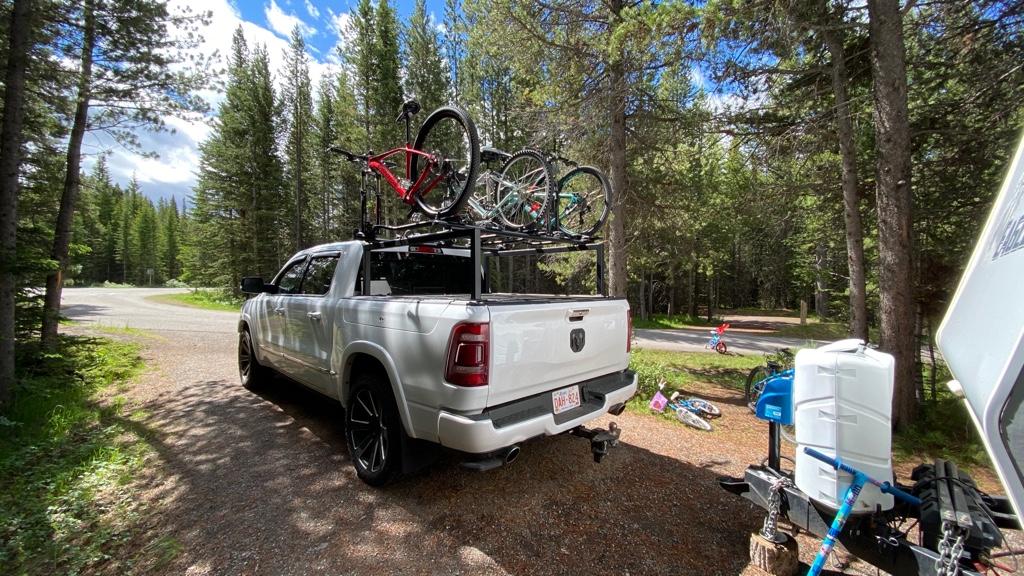

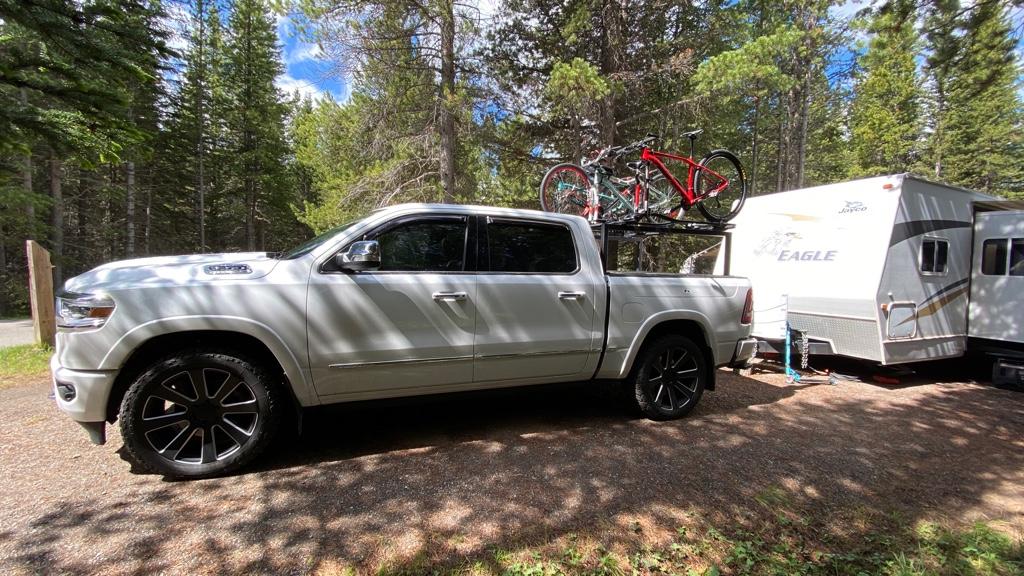

Just got back from our second long distance (200mile) trip with 5 bikes attached. Rack doesn’t budge!




Popp

Member
Joined
Aug 23, 2019
Messages
12
Reaction score
27
Yes, Popp...please post pics of how you mounted them.

Also, what rims are those? And are you on air suspension? If so, is that just the entry position or did you lower the truck?

Wheels are Dub 8balls. Yes on Air and truck was in entry in those picks.




Sent from my iPhone using Tapatalk


bvigne01

Active Member
Joined
Jun 21, 2018
Messages
116
Reaction score
26


bvigne01

Active Member
Joined
Jun 21, 2018
Messages
116
Reaction score
26
Yea it ain't cheap, pricey but it's hand made in the USA so it's going to cost more


XoVoX

Active Member
Joined
Feb 20, 2021
Messages
27
Reaction score
16
Location
San Angelo, TX
I feel like the market must not be there for people to have a bed rack and a tonneau cover combination as I cant find them anywhere. I'd like a secured bed with a rack.

Apparently the MFT is a dealbreaker for people and since I dont have the ramboxes I'm just SOL.


Mikey69

New Member
Joined
Sep 24, 2021
Messages
3
Reaction score
1
I’m definitely going to have this built. Do you have dimensions of the steel brackets and the gauge of steel used?


Attachments

  • 79DFA14A-9FB2-4BD8-87DF-7E4801FA56E0.jpeg
    120.2 KB · Views: 45

Mikey69

New Member
Joined
Sep 24, 2021
Messages
3
Reaction score
1

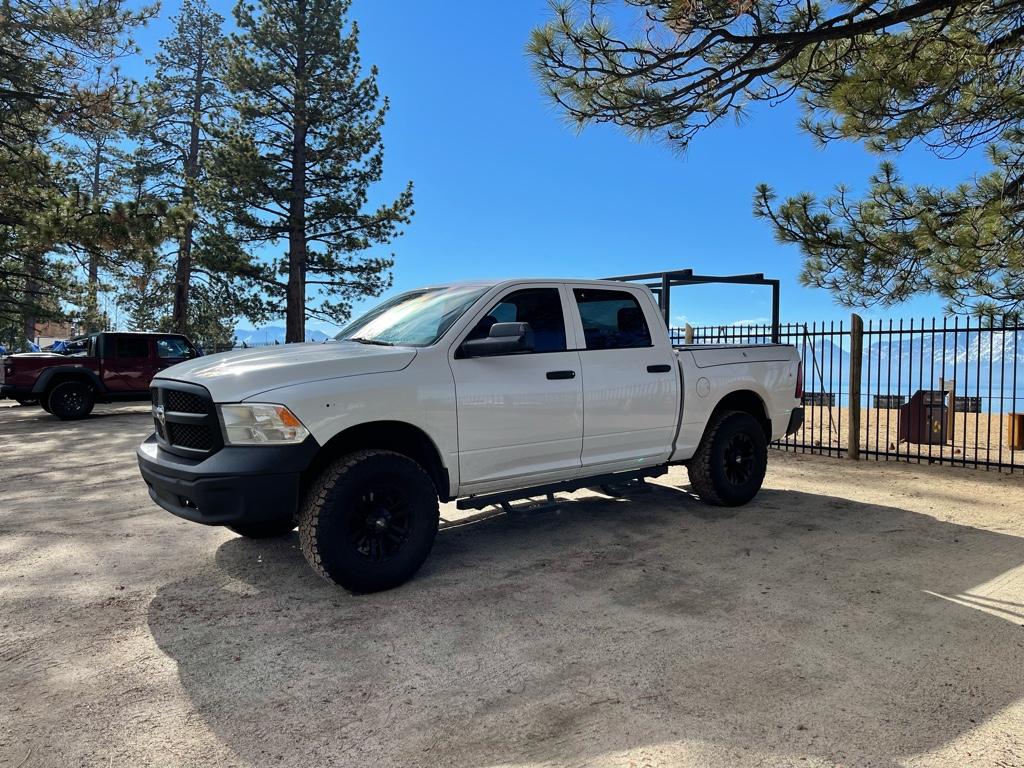

I had a custom rack built similar to the one posted on this feed. If only I could find a soft topper that fits within the rack and mounts to stock aluminum brackets


Sent from my iPhone using Tapatalk


GregSLC66

Member
Joined
Aug 2, 2019
Messages
8
Reaction score
6
Hi Everyone,

Sorry for late reply, not on here much. Here are some pictures of the rack while being built as well as close ups of mounts. My partner is willing to make more at whatever height/modifications you’d like. Just the racks without Thule cross bars would be about $500 (powdercoted) Thule bars were about $250 (can’t remember as it was originally on from a Xporter. We could build our on cross bars if using for ladders or canoes etc. But Thule, Yakima etc bars would be best for accessories like ski/bike racks.


Sent from my iPhone using Tapatalk





Just got back from our second long distance (200mile) trip with 5 bikes attached. Rack doesn’t budge!


Still willing to make/sell this type of rack? This is exactly what I’m looking for.
